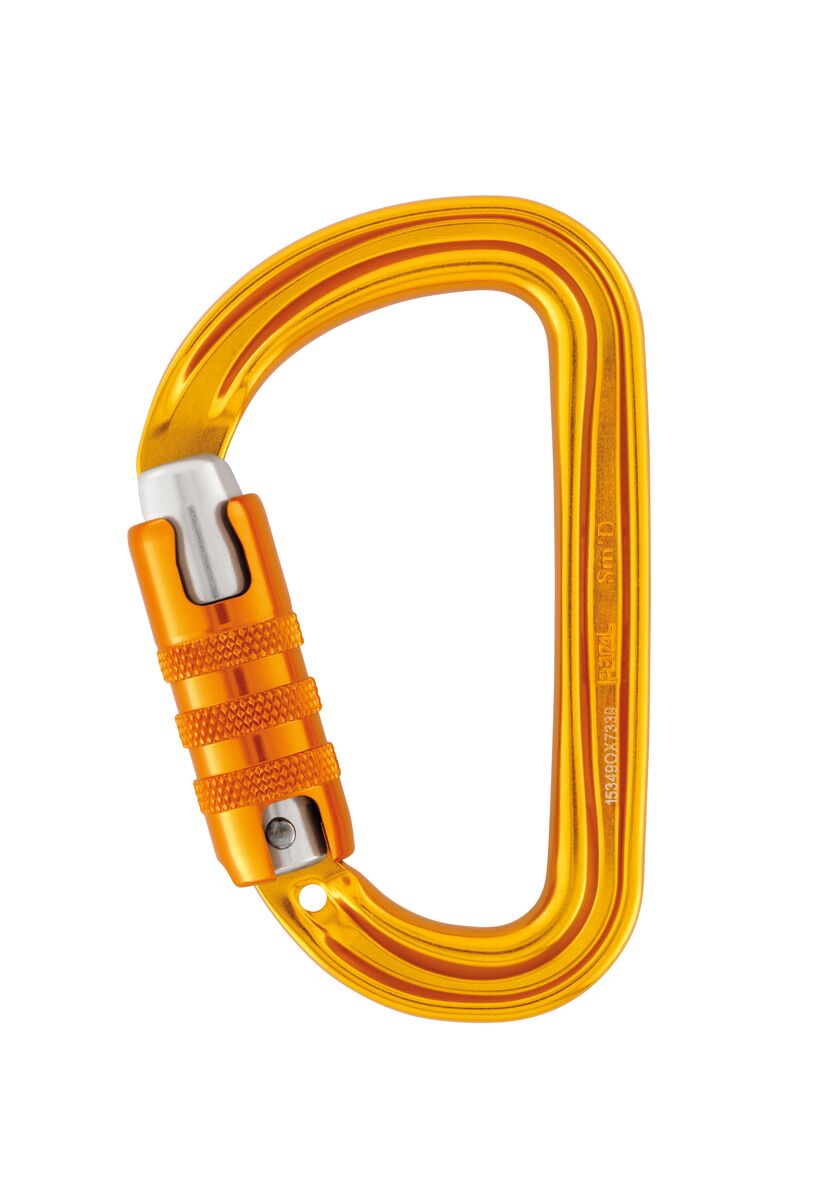

Sm'D

Ultra-light asymmetric carabiner

The compact Sm'D asymmetrical aluminum carabiner is recommended for workers at height looking to reduce weight to a minimum. D shape makes it especially suitable for attaching devices. It is available in two locking systems (automatic TRIACT-LOCK system or manual SCREW-LOCK system), or without a locking system.

Description

D shape is especially suitable for attaching devices
Compact aluminum carabiner, for workers at height looking to reduce weight to a minimum
Easier handling:
- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
H cross-section:
- ensures an optimal strength/weight ratio
- protects markings from abrasion
Hole for connecting TIBLOC or MICRO TRAXION type devices, limiting the risk of losing them
Two locking systems available:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Available without locking system, for easy clipping during progression using climbing techniques

References	M39A TL	M39A SL	M39A S	M39A TLN	M39A SLN	M39A SN
Weight	55 g	45 g	40 g	55 g	45 g	40 g
Locking system	TRIACT-LOCK	SCREW-LOCK	Without locking system	TRIACT-LOCK	SCREW-LOCK	Without locking system
Certification(s)	CE EN 362, CE EN 12275 type B, EAC, GB/T 23469 / B, conforme à la réglementation japonaise de protection contre les chutes	CE EN 362, CE EN 12275 type B, EAC, GB/T 23469 / B, conforme à la réglementation japonaise de protection contre les chutes	CE EN 12275 type B	CE EN 362, CE EN 12275 type B, EAC, GB/T 23469 / B, conforme à la réglementation japonaise de protection contre les chutes	CE EN 362, CE EN 12275 type B, EAC, GB/T 23469 / B, conforme à la réglementation japonaise de protection contre les chutes	CE EN 12275 type B
Color(s)	yellow	yellow	yellow	black	black	black
Major axis strength	23 kN	23 kN	23 kN	23 kN	23 kN	23 kN
Minor axis strength	8 kN	8 kN	8 kN	8 kN	8 kN	8 kN
Open gate strength	7 kN	7 kN	7 kN	7 kN	7 kN	7 kN
Gate opening	19 mm	20 mm	23 mm	19 mm	20 mm	23 mm
