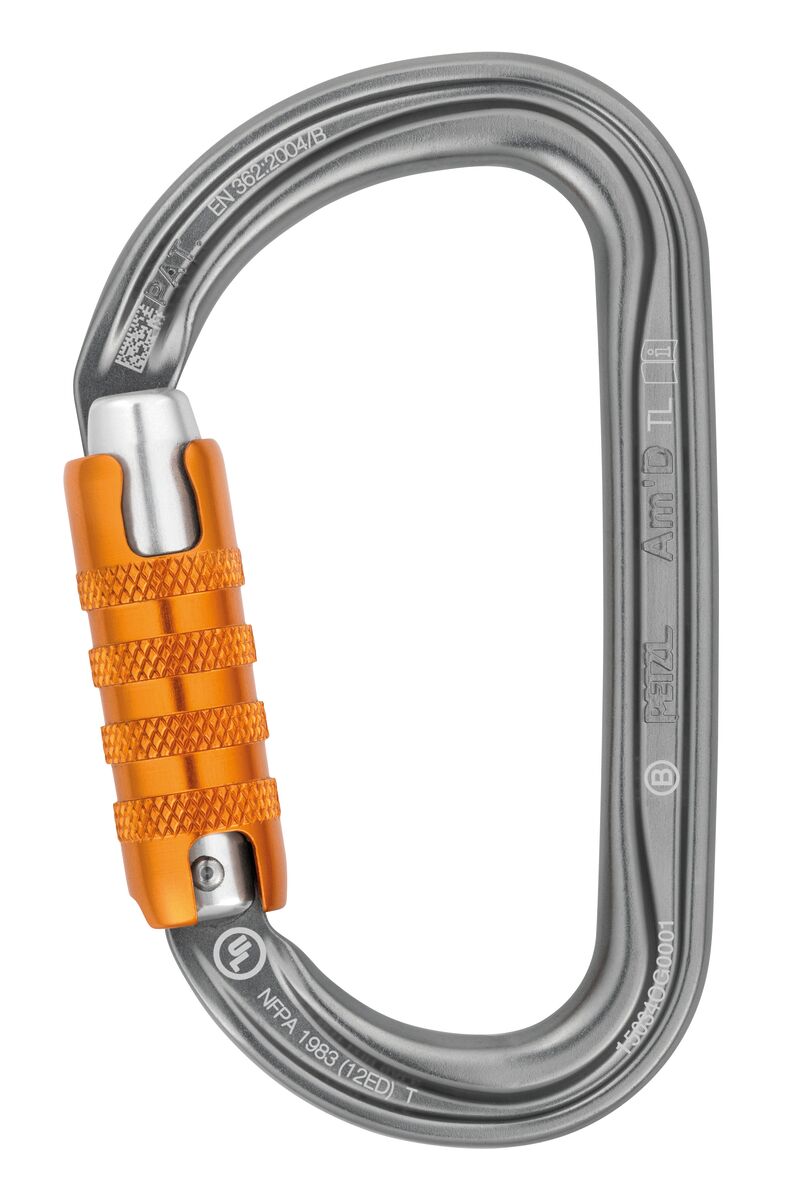

Am’D

Lightweight asymmetrical carabiner

The Am’D lightweight asymmetrical carabiner is made of aluminum. It has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate handling. The Am’D carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system. Am'D may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Description

D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
Aluminum carabiner is light, reducing the weight of equipment the worker at height needs to carry
May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
Easier handling:
- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
H-shaped cross-section:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
Available in three different locking systems:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Also available in black (TRIACT-LOCK and SCREW-LOCK versions) and gold (TRIACT-LOCK and BALL-LOCK versions)

Specifications

Material(s): aluminum
Certification(s): CE EN 362, 12275 type B, EAC, NFPA 2500 Technical Use

References	M34A TL	M34A BL	M34A SL	M34A TLN	M34A SLN	M34A TLY
Weight	75 g	75 g	70 g	75 g	70 g	75 g
Locking system	TRIACT-LOCK	BALL-LOCK	SCREW-LOCK	TRIACT-LOCK	SCREW-LOCK	TRIACT-LOCK
Color(s)	Gray	Gray	Gray	Black	Black	Gold
Major axis strength	27 kN	27 kN	27 kN	27 kN	27 kN	27 kN
Minor axis strength	8 kN	8 kN	8 kN	8 kN	8 kN	8 kN
Open gate strength	7 kN	7 kN	7 kN	7 kN	7 kN	7 kN
Gate opening	24 mm	25 mm	25 mm	24 mm	25 mm	24 mm
