Description:

Features:

• Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility

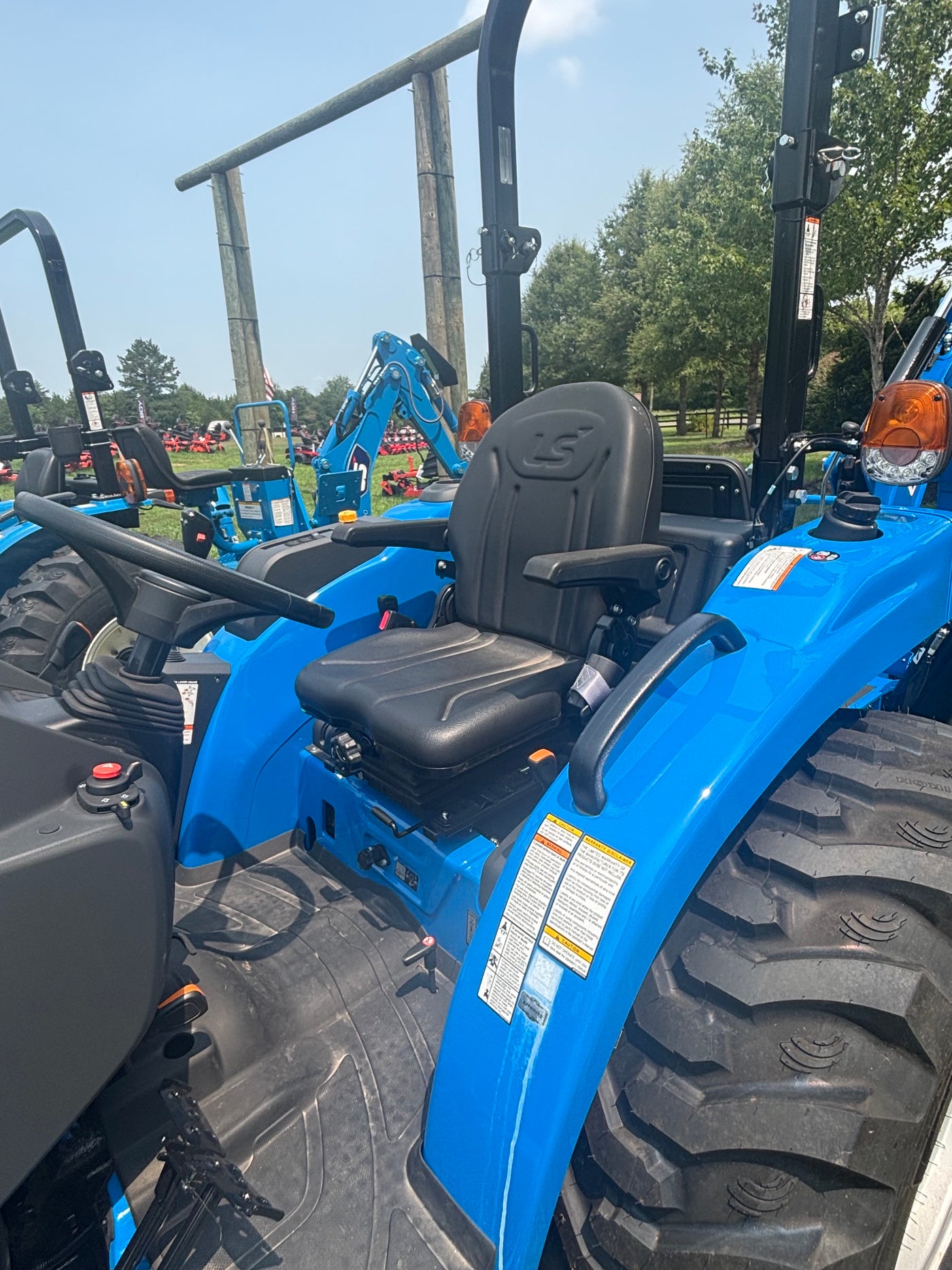

• Much improved seat comfortability
• Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals)
• New hood design (LS Family look), Grill open space plus 20%
• LED head Lamp
• 1 Inch large tire size and four different tire options
• Larger lifting capacity, loader lifting capacity of New MT226E (LL3301/2) 1,965lbs. New MT2E & MT2 (LL3303) 2,506lbs.
• Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.

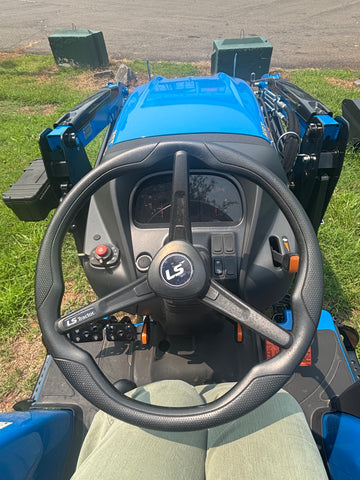

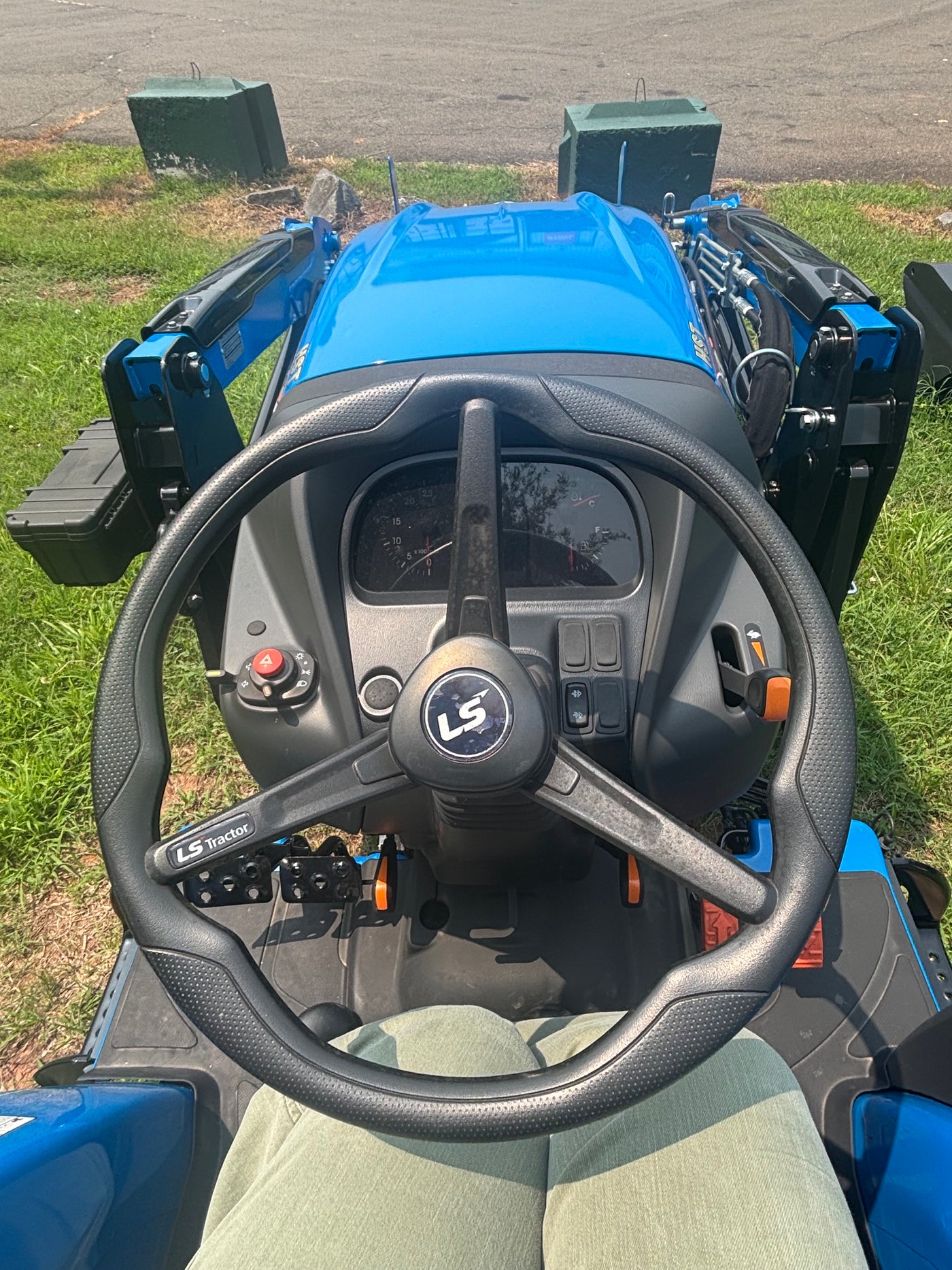

• TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
• E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift.

Specifications:

Engine

• Type: 4 Cylinder liquid-cooled Diesel, NA, CRDI
• Model (Tier 4): YANMAR
• Engine HP (Gross): 42.5 HP
• PTO HP: 34.8 HP
• Rated Speed: 2,600 RPM
• Displacement: 133.6 cu in
• Fuel Tank Capacity: 10.6 gal
• Alternator: 12V – 55 Amps

Drive Train

• Transmission Type: HST (Hydrostatic Transmission)
• Number of Speeds: 3 Ranges
• Brakes: Wet, Multi-disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Rear RPM: 540 (Standard)

Hydraulic System

• Control System: Position
• Implement Pump: 6.7 gpm
• Steering Pump: 5 gpm
• Total Flow: 11.7 gpm
• 3-Point Hitch Category: CAT I
• Hitch Lift Capacity: 1,808 lbs
• Remote Valves: 1 Pair

Dimensions

• Overall Length (Frame to Link): 125 in
• Overall Width (with Tires): 66 in
• Wheelbase: 74 in
• Height to Top: 95 in

Tire Sizes

• Ag Tires (Front/Rear): 7 – 14 / 11.2 – 24
• Industrial Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20
• Versa Turf Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20
• Turf Tires (Front/Rear): 25 x 8.50 – 14 / 41 x 14 – 20

Weight

• Total Weight (without ballast): 3,338 lbs
