Description

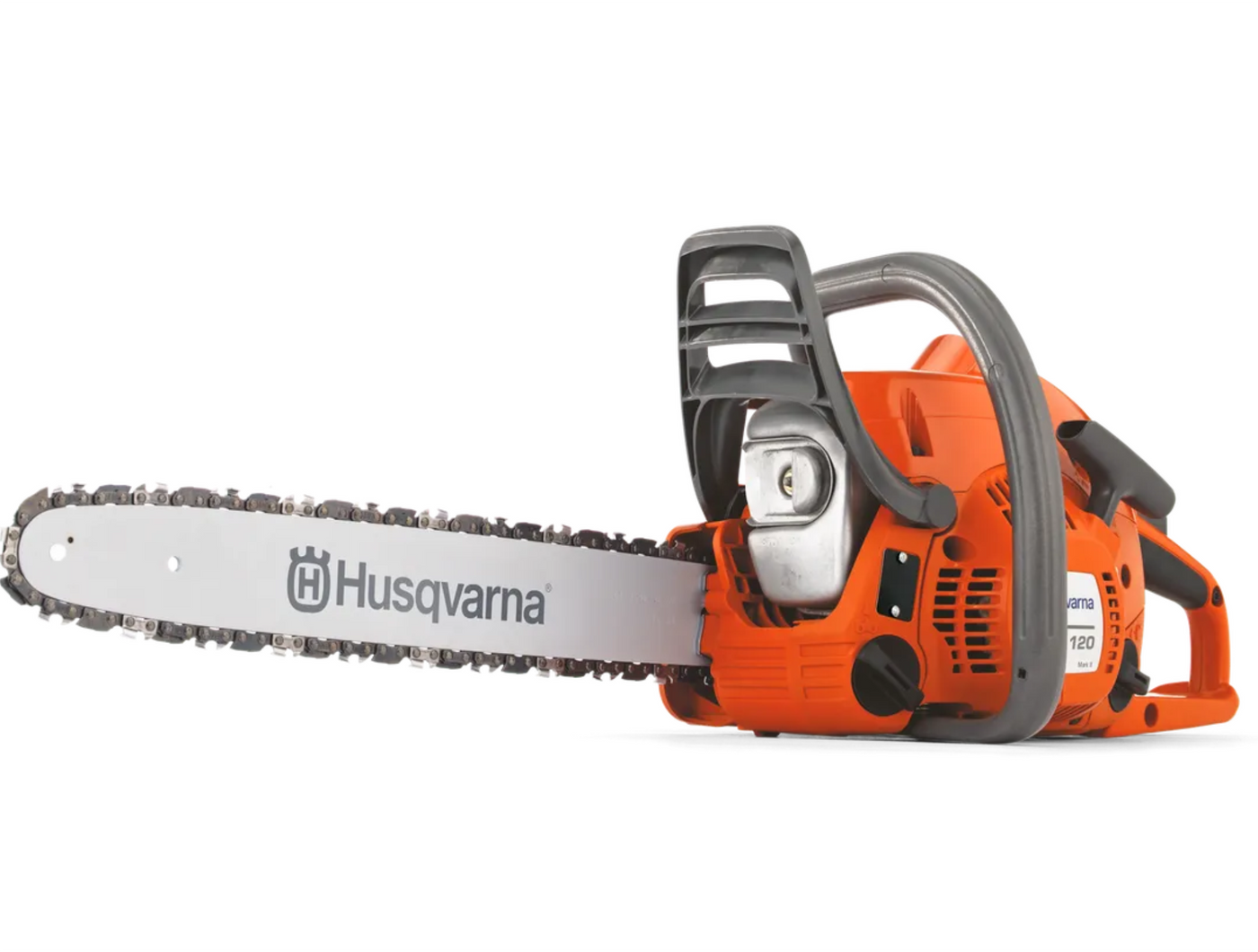

120

For performance without the frills, trust the Husqvarna 120. This all-round gas saw features our proprietary X-TORQ® engine to deliver superior performance, increased fuel efficiency and low emissions. Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter. And LowVib® technology keeps this saw comfortable to use, no matter the task.

Specifications:

Model: 16", 3/8 pitch, .050 ga. 38cc Chainsaw FA CraftBx

SKU: 970 51 50-16

Engine:

• Cylinder Displacement: 38.2 cm³
• Output Shaft Power: 1.88 hp
• Clutch Engagement Speed: 4,250 rpm (±120)
• Electrode Gap: 0.02 in
• Idling Speed: 3,000 rpm
• Maximum Power Speed: 9,000 rpm
• Oil Pump Type: Automatic
• Spark Plug: Champion RCJ7Y

Equipment:

• Recommended Bar Length (Min): 14 in
• Recommended Bar Length (Max): 18 in
• Chain Type: H37
• Bar Length: 40 cm (16 in)
• Sprocket Type: Spur 6
• Gauge: .050"

Dimensions:

• Weight (Excl. Cutting Equipment): 10.7 lbs

Sound and Noise:

• Sound Pressure Level at Operator's Ear: 100.7 dB(A)
• Sound Power Level, Guaranteed (LWA): 113 dB(A)
• Sound Power Level, Measured: 100.7 dB(A)

Vibration:

• Equivalent Vibration Level (ahv, eq) Rear Handle: 2.7 m/s²
• Equivalent Vibration Level (ahv, eq) Front Handle: 2.1 m/s²

Lubricant:

• Oil Tank Volume: 0.32 US pint
• Lubricant Type (Engine): Husqvarna 2 stroke or equivalent at 50:1

Emission:

• Exhaust Emissions (CO₂ EU V): 957 g/kWh
