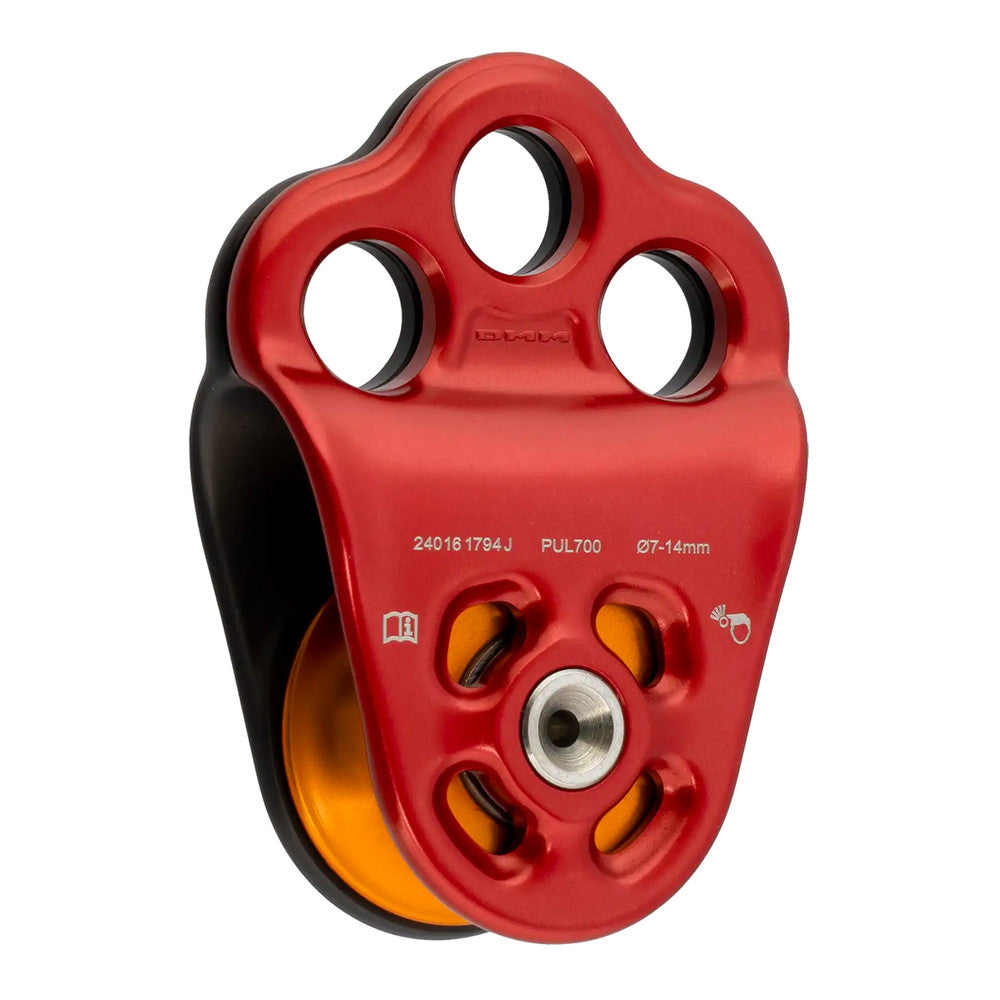

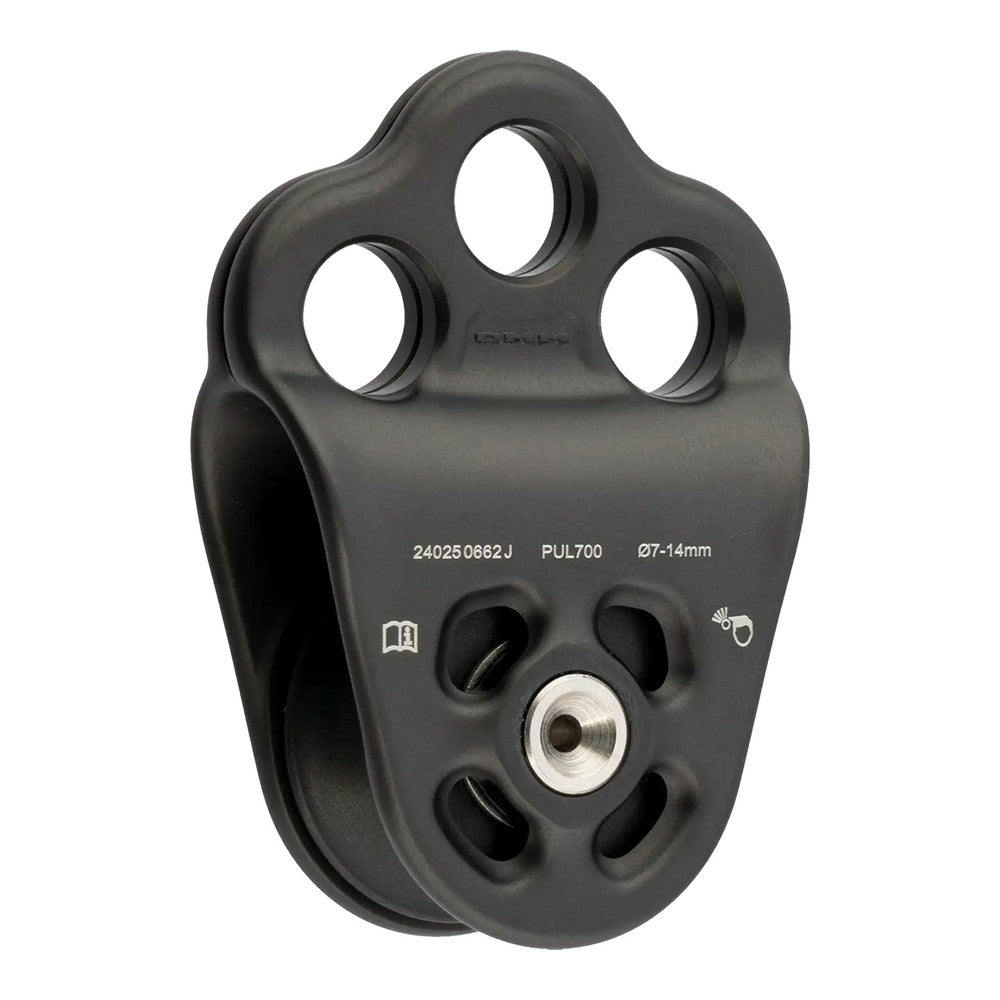

Everyone's favorite pulley just got better. DMM's Triple Attachment Pulley 2 forms an integral part of the renowned Hitch Climber System and is a firm favorite of working at height professionals. The three hole construction makes rigging and organizing much simpler and allows for off-center hanging to minimize rope to pulley friction. The updated design features sealed bearings in place of bushings, offering improved efficiency. Improving ease of use, the new U shape (rather than V shape) above the sheave increases volume. This means rope feeds in more easily when used in hitch climber system.
FEATURES
- Bushings have been replaced with sealed bearings, offering improved efficiency
- Updated straight sides tend the hitch better
- Extra volume in U shape rather than V shape above sheave means rope feeds in more easily when used in hitch climber system
- Rigging plate helps organize single or multiple attachments
- Fairlead flares help maintain high working efficiency
- Compatible with most carabiner shapes and many textile connecting elements including rope and webbing
- Size of attachment holes reduce probability of unwanted rotation of locking carabiners
- Direct connection to textile components at the round edged attachment holes, helping to reduce system costs, increase lift height, minimise space required and enhance tolerance to torsion
- Side plate shape allows an autoblock knot to function when the rope approaches the sides as well as at the bottom of the pulley
- Tamperproof construction
TECH SPECS
- MBS: 30 kN
- WLL: 6 kN
- Dimensions: 94 x 68 x 33 mm
- Weight: 150 g
- Rope Diameter: 14 mm Max
- Certification: EN12278:2007
