Description:

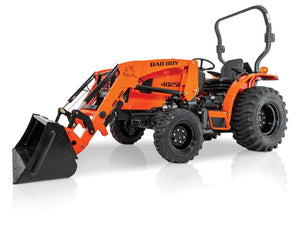

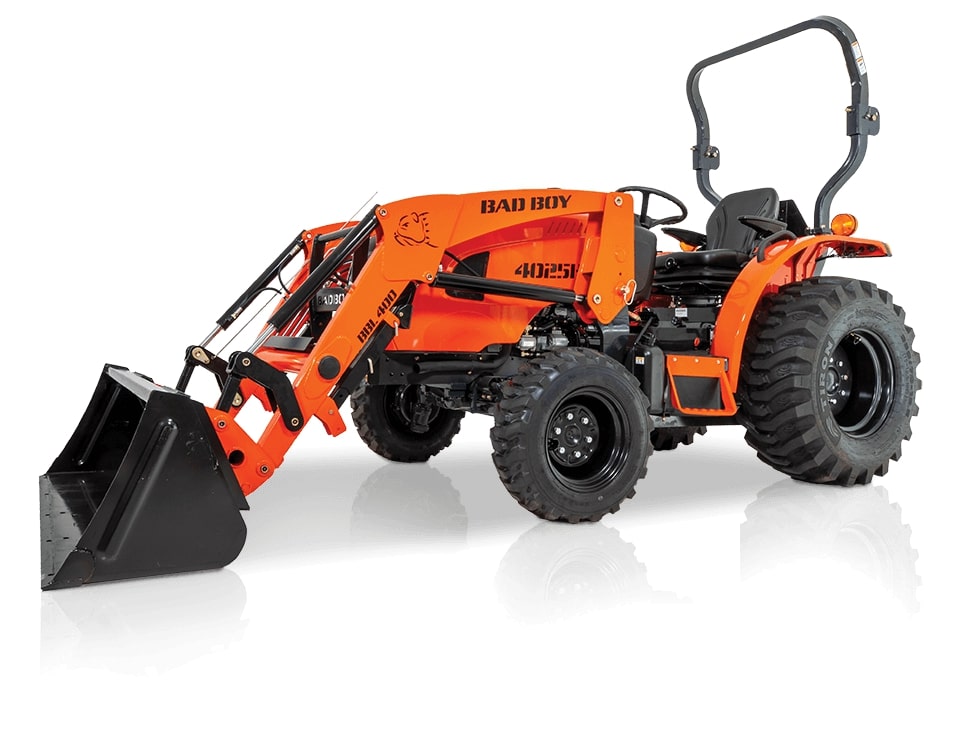

The Bad Boy 4025 Series Tractor is as tough as they come. It has the largest frame of any tractor in its class, making it stronger and giving it more ground clearance than the competition. Equipped with a 25-horsepower diesel engine, up to 2200 lbs. of lifting power, it can handle chores usually reserved for much larger tractors. In terms of pulling power, this Bad Boy features differential lock, automatically equalizing power to both rear wheels. If you need even more boost, use the selectable 4-wheel drive to engage the front wheels and maximize traction and pulling power. If you want durability and performance, this compact tractor is all Bad Boy.

Features:

• 25 Horsepower
• 2,200 lbs. Loader Lift Capacity At Pins
• Hydro Max Transmission
• Metal Hood & Fenders
• Cast Iron Axles
• Additional Features
• Dual HST Pedals
• 3 Range Transmission
• Independent PTO
• Power Steering
• Selectable 4wd
• Differential Lock
• 6 Year Powertrain Warranty

Specification:

Engine

• Type: 3 Cylinder, Water-Cooled, Diesel
• Horsepower: 25 HP @ RPM
• Displacement: 104.5 cubic inches
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.1 gallons

Drivetrain

• Transmission: HST (Hydro-Static Transmission)
• Number of Speeds: 3 Range
• Clutch: No
• Brakes: Wet, Multi-Disc

Hydraulics

• Type: Hydro-Static Power Steering
• Total Hydraulic Flow: 11.5 (4 + 7.5) GPM (Power Steering + Implement)
• 3-Point Hitch: CAT 1
• 3-Point Hitch Lift Capacity: 1,100 lbs @ 24" behind lift point @ ball ends

Dimensions

• Overall Length: 134.88 inches
• Overall Width: 56.7 inches
• Overall Height: 104.06 inches
• Wheelbase: 65.7 inches
• Minimum Ground Clearance: 13.1 inches
• Weight: 2,970 lbs

PTO (Power Take-Off)

• Type: Independent
• Rear (Mid) PTO Speed: 540 RPM
• PTO Horsepower: 19.1 HP

Electrical

• Battery: 12 V, 540 CCA
• Alternator: 12 V, 50 A

Wheels & Tires

• Front Tires: 25x8.50-14
• Rear Tires: 15-19.5

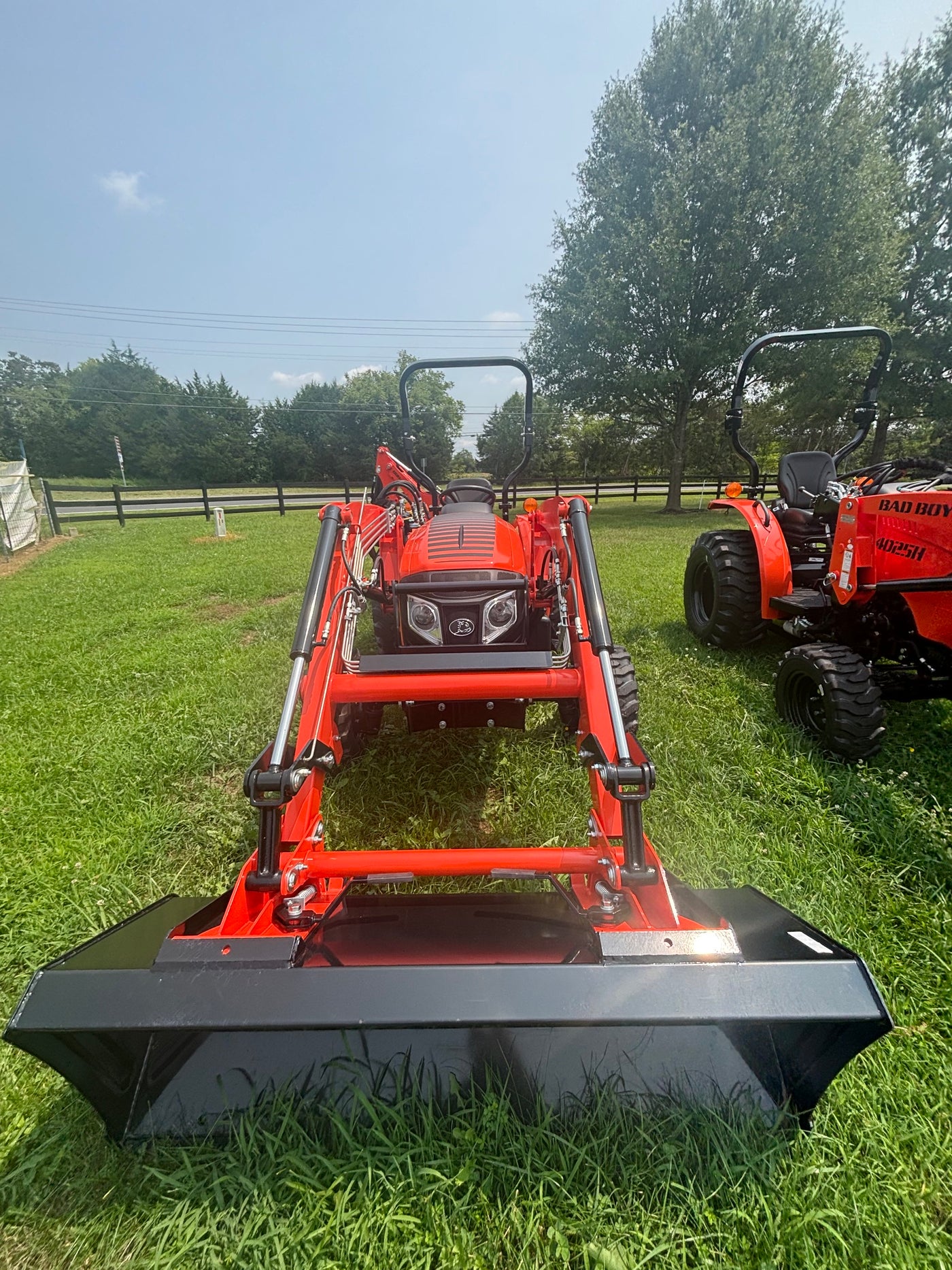

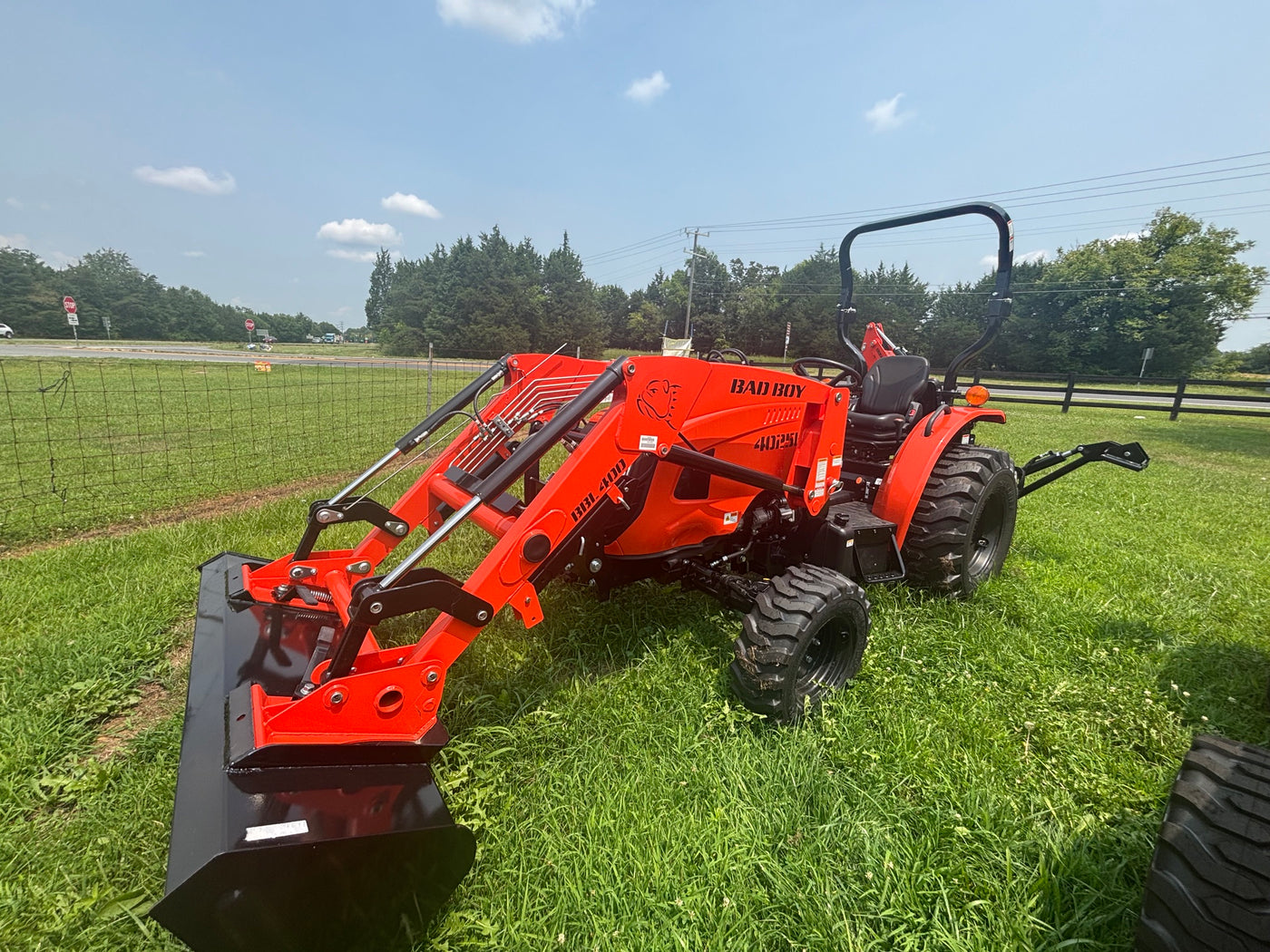

Loader (Model BBL400)

• Standard Bucket Size: 62 inches
• Maximum Lift Height: 104 inches
• Dig Depth: 1.8 inches
• Lift Capacity to Full Height at Pivot Pin: 2,200 lbs
• Breakout Force: 3,660 lbs
• Shipping Weight: 1,007 lbs

Backhoe (Model BBH400)

• Standard Bucket Size: 16 inches
• Type: Subframe-Mounted, Quick Attach
• Maximum Dig Depth: 92.2 inches
• Dig Force (Bucket): 4,380 lbs
• Shipping Weight: 1,270 lbs
