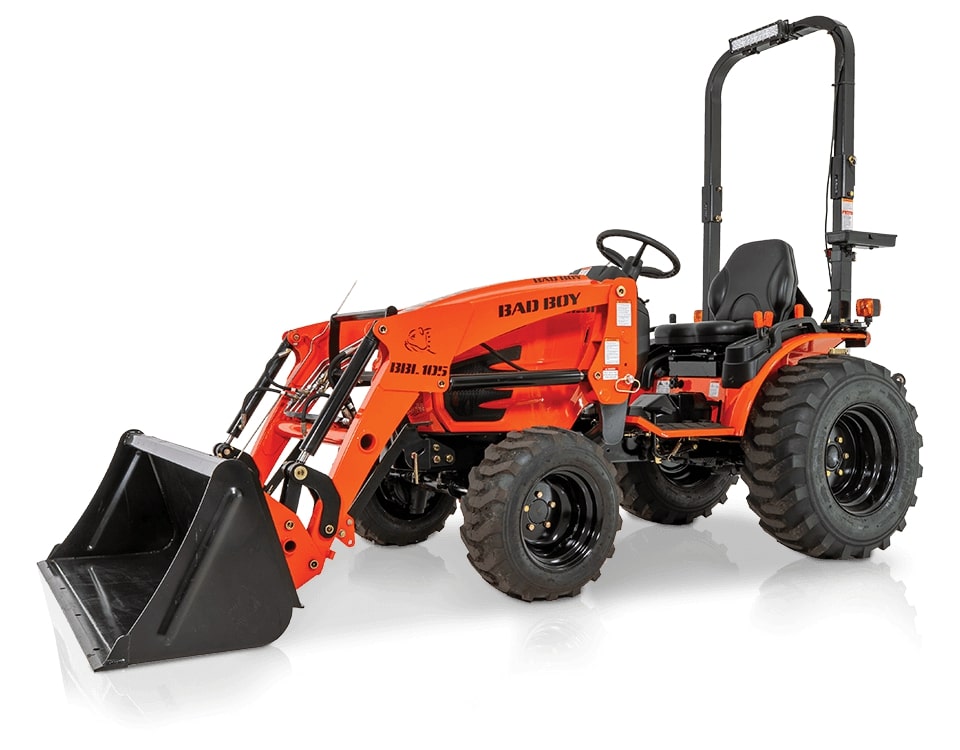

Bad Boy BB1025HILB Tractor, Loader & Backhoe ^Sale

Description:

The 1025H Sub-Compact Bad Boy Tractor is small enough to go where bigger tractors can't, and powerful enough to get the job done. At under 4 feet wide, this sub-compact tractor can squeeze into barn stalls and through gates to get where you need to work. Featuring 25 horsepower and over 600 pounds of full lifting capacity, along with our easy to drive automatic hydro-static transmission and four wheel drive you're ready to tackle any job for the small land owner. It's quick and easy to attach a wide variety of implement, like our front loader bucket or backhoe, thanks to the standard skid steer style front end and Category 1 three-point hitch.

The Bad Boy 1025 Tractor may be smaller in size, but it delivers the same power, strength and quality Bad Boy is known for. Born and bred for hard work, it has 992 pounds of loader lift capacity. In terms of pulling power, this Bad Boy features differential lock, automatically equalizing power to both rear wheels. If you need even more boost, use the selectable 4-wheel drive to engage the front wheels and maximize traction. The power steering and cruise control make getting around easy and effortless. And this tractor is made with Bad Boy steel, including the full metal hood. You can also feel confident about the quality – this Bad Boy comes with a 7-year powertrain warranty. If you want value, this little tractor comes up big.

Features:

• 25 Horsepower
• 992 lbs. Loader Lift Capacity At Pins
• Hydro Max Transmission
• Dual HST Pedals
• 2 Range Transmission
• Additional Features:
• Independent PTO
• Power Steering
• Selectable 4wd
• Diffirential lock
• 7 Year Powertrain Warranty

Specifications:

Engine

• Type: 3-Cylinder, Water-Cooled, Diesel
• Horsepower: 24.6 HP @ RPM
• Displacement: 77.3 in³
• Cylinders: 3
• Fuel Tank Capacity: 5.8 gallons

Drivetrain

• Transmission: HST (Hydrostatic Transmission)
• Speeds: 2 Range
• Clutch: No
• Brakes: Wet, Multi-Disc

Hydraulics

• Type: Power-Assisted Hydrostatic
• Total Hydraulic Flow: 7.0 GPM (2.8 for steering + 4.2 for implements)
• 3-Point Hitch: Category 1
• Rear Remote Valve: N/A
• Lift Capacity @ 24" Behind Link: 1,101 lbs

Dimensions

• Overall Length: 104"
• Overall Width: 45.8"
• Overall Height: 91.3"
• Wheelbase: 57.5"
• Ground Clearance: 9.4"
• Weight: 1,638 lbs

PTO

• Type: Independent
• PTO Speed: 540 RPM (Rear/Mid)
• PTO Horsepower: 18.8 HP

Electrical

• Battery: 12V, 500 CCA
• Alternator: 12V, 40A

Wheels & Tires

• Front (IND): 23x8.50-12
• Rear (IND): 12-16.5

Attachments

Loader – Model BBL105

• Bucket Size: 50"
• Max Lift Height: 75.5"
• Dig Depth: 4.6"
• Lift Capacity at Full Height (Pivot Pin): 992 lbs
• Breakout Force: 1,531 lbs
• Shipping Weight: 573 lbs

Backhoe – Model BBH105

• Bucket Size: 12"
• Type: Subframe-Mounted, Quick Attach
• Max Dig Depth: 76"
• Dig Force (Bucket): 2,020 lbs
• Shipping Weight: 816 lbs
