Description:

Features:

• 35 Horse Power
• 2,200 lbs. Loader Lift Capacity At Pins
• Metal Hood and Fenders
• Cast Iron Axles
• Factory Cab with Heat and Air Available
• Addtional Feature
• Easy to adjust pin style stablizers
• Cruise Control
• Hydro Max Transmission
• Dual HST Pedals
• 3 Range Transmission
• Independent PTO
• Power Steering
• Selectable 4wd
• Differential Lock
• 6 Year Powertrain Warranty

Specifications:

• Engine
• Engine Type: 3 Cylinder, Water-Cooled, Diesel
• Engine HP @ RPM: 35 HP
• Displacement: 104.5 cubic inches
• Number of Cylinders: 3
• Fuel Tank Capacity: 7.1 gallons
• Drivetrain
• Transmission: HST (Hydrostatic Transmission)
• Number of Speeds: 3 Range
• Clutch: No
• Brakes: Wet, Multi-Disc Brakes
• Hydraulics
• Hydraulic Type: Hydro-Static Power Steering
• Total Hydraulic Flow: 12.6 GPM (4.4 GPM for Power Steering, 8.2 GPM for Implement)
• 3-Point Hitch: Category 1 (CAT 1)
• Rear Remote Valve: Optional (up to 2)
• 3-Point Hitch Lift Capacity (24" Behind Lift Point): 1,100 lbs.
• Dimensions
• Overall Length: 134.88 inches
• Overall Width: 4035H - 56.7 inches | 4035CH - 55.6 inches
• Overall Height: 104.06 inches
• Wheelbase: 65.7 inches
• Minimum Ground Clearance: 13.1 inches
• Weight:
• 4035H: 3,164 lbs
• 4035CH: 3,551 lbs
• PTO
• PTO Type: Independent
• Rear (Mid) PTO Speed: 540 RPM
• PTO HP: 29.5 HP
• Electrical
• Battery: 12 V, 540 CCA
• Alternator: 12 V, 50 A
• Wheels & Tires
• Front Tires: 28x8.50-15
• Rear Tires: 43x16.00-20
• 4035 Attachments

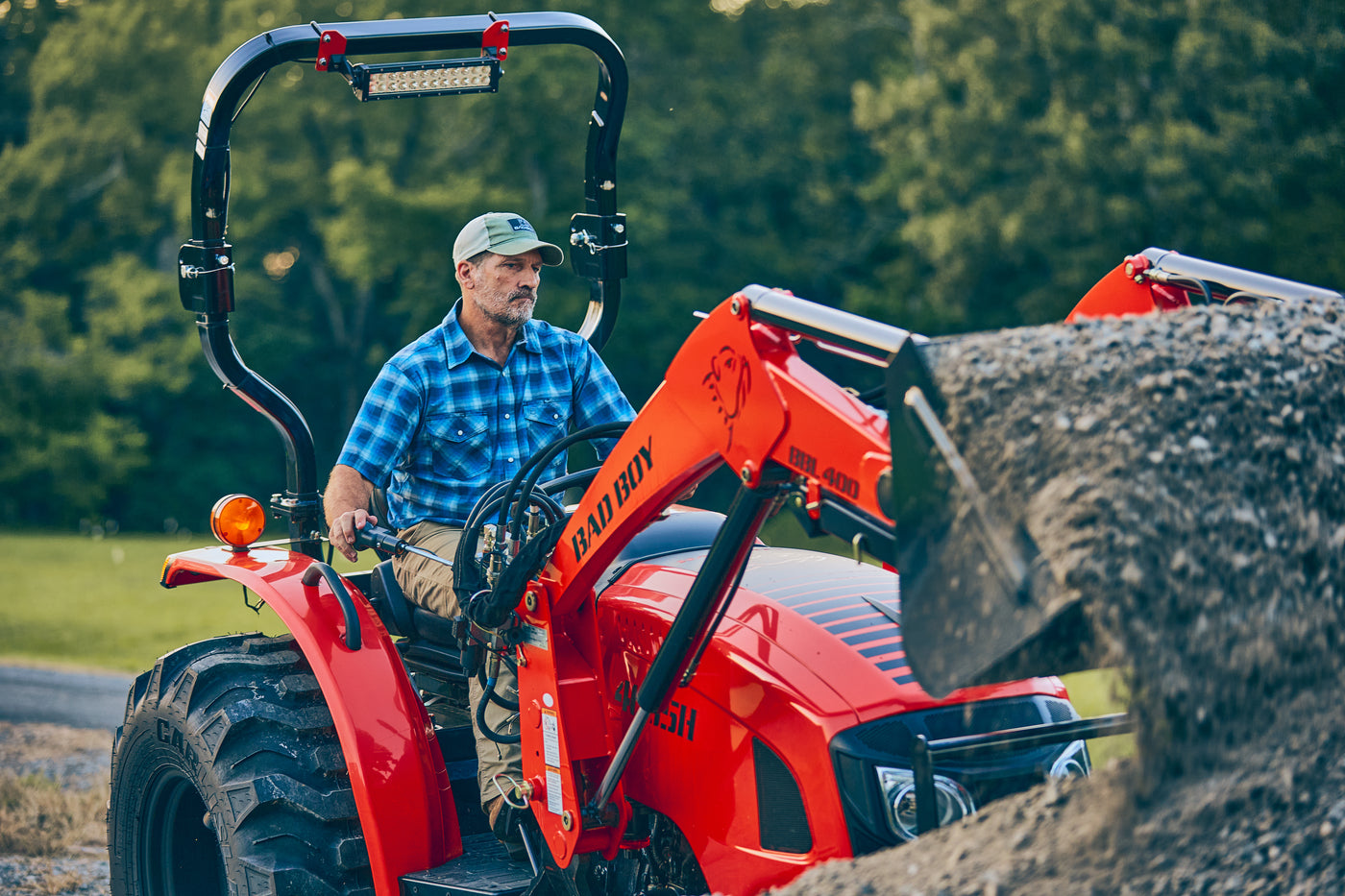

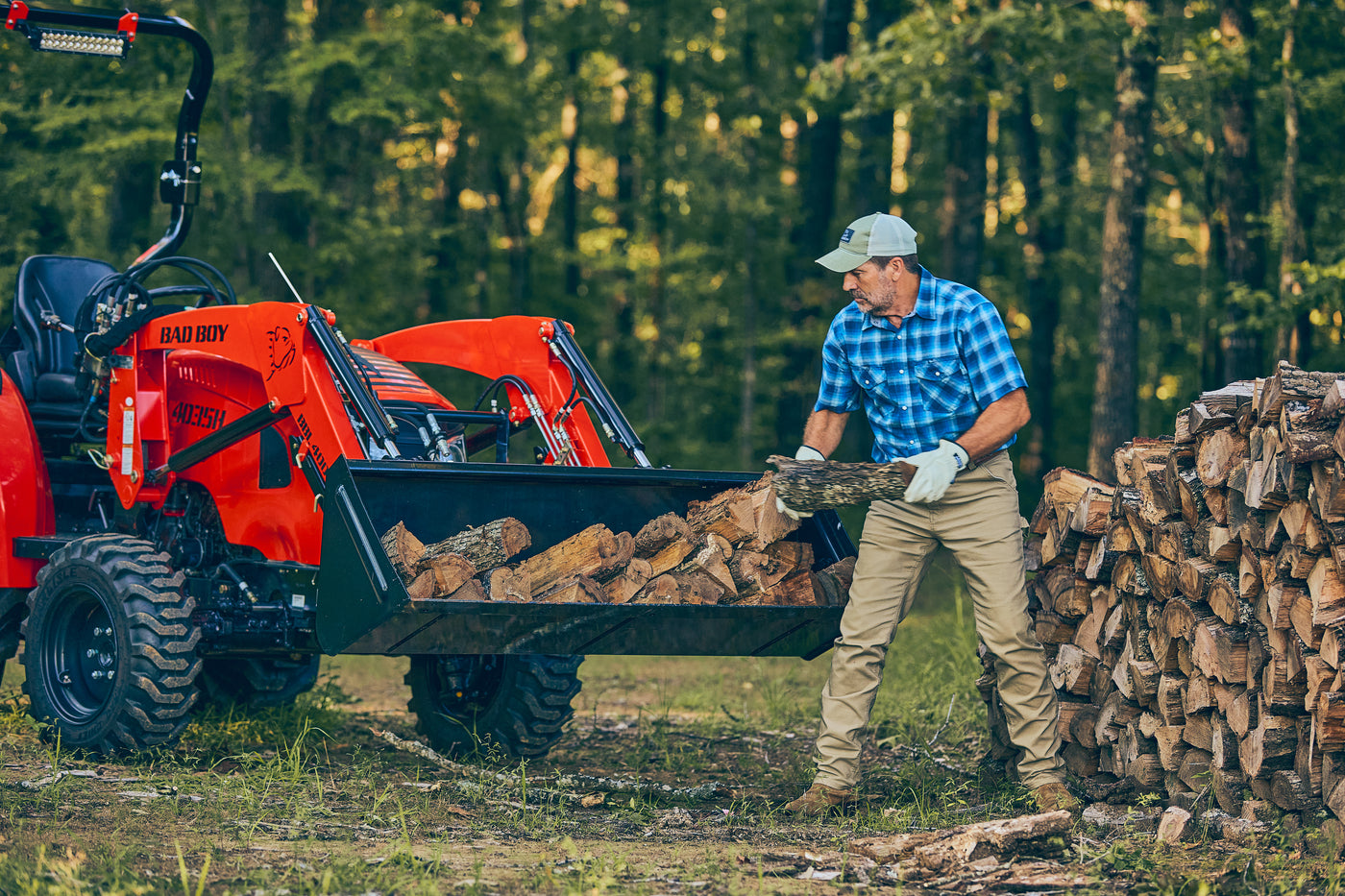

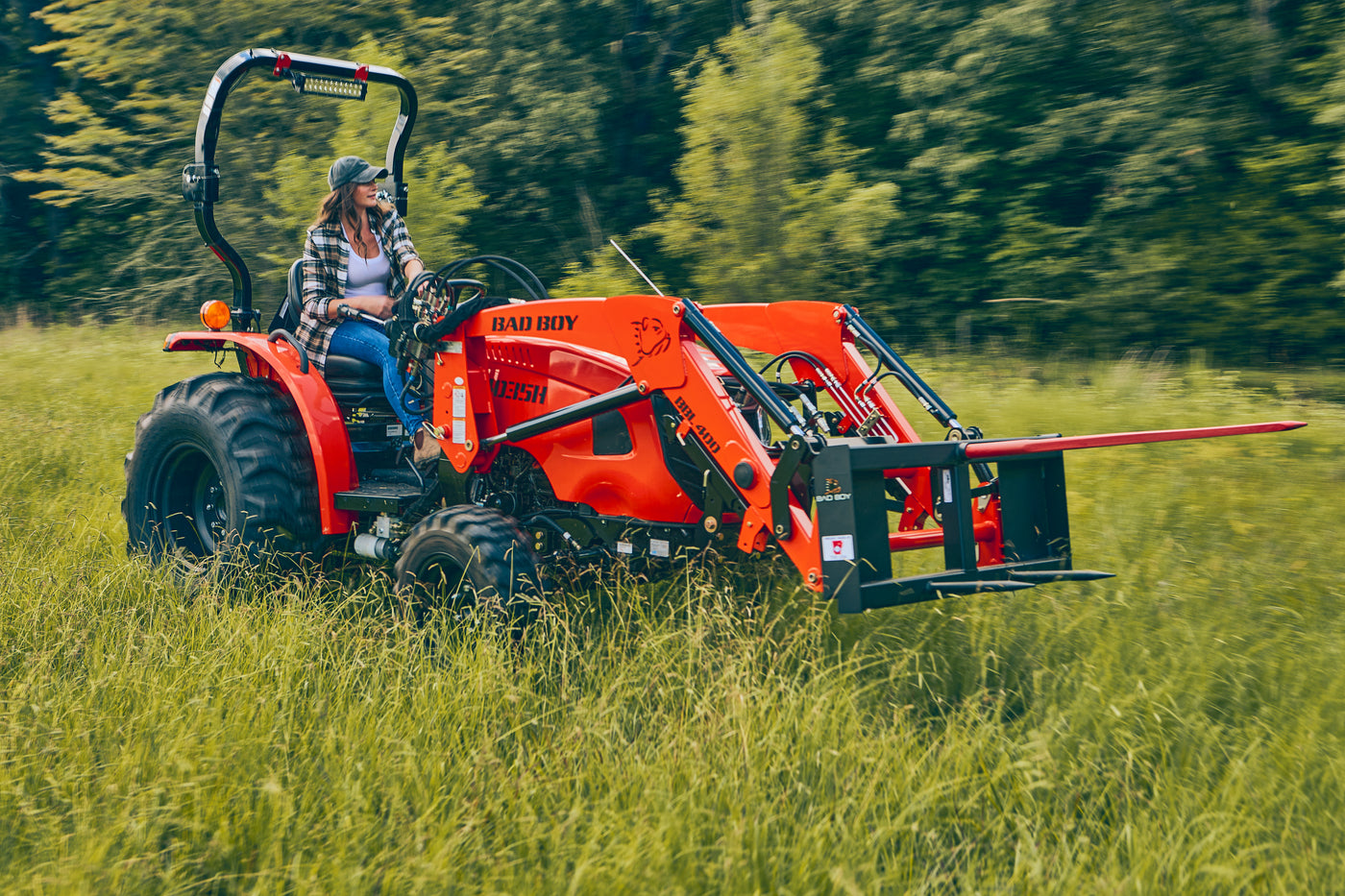

• Loader - Model BBL400
• Standard Bucket Size: 62 inches
• Maximum Lift Height: 104 inches
• Dig Depth: 1.8 inches
• Lift Capacity to Full Height at Pivot Pin: 2,200 lbs
• Breakout Force: 3,660 lbs
• Shipping Weight: 1,007 lbs
• Backhoe - Model BBH400
• Standard Bucket Size: 16 inches
• Type: Subframe-Mounted, Quick Attach
• Maximum Dig Depth: 92.2 inches
• Dig Force (Bucket): 4,380 lbs
• Shipping Weight: 1,270 lbs
