This lightweight guide bar features an updated modern graphic design, the same reduced-kickback design, and legendary STIHL quality.

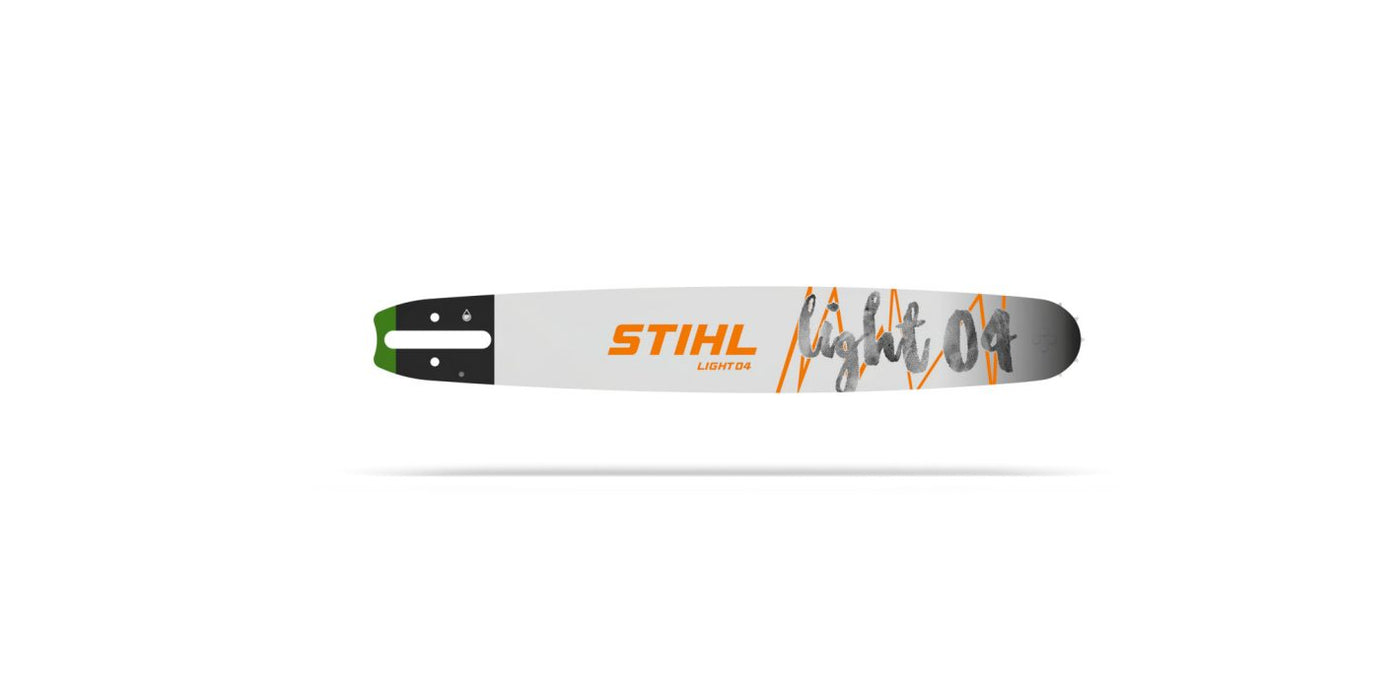

With its legendary STIHL quality and updated modern design, the STIHL Light 04 Guide Bar is a great all-around option for frequent chainsaw use. The bar itself consists of three metal plates electrically welded together for a lightweight yet stable feel, and a narrow bar nose is designed to reduce kickback. The four-rivet sprocket in the bar nose allows the chain to travel from the top to the bottom of the bar, reducing wear and tear. Induction-hardened rails also increase wear resistance and help lead to a long service life. Fans of the STIHL ROLLOMATIC® E Standard Guide Bar will enjoy the Light 04 Guide Bar for cutting firewood, delimbing and more. The guide bar includes convenient laser engraved graphics that list length, pitch, groove width, drive link count, and part number.
Fits a variety of Stihl chainsaws including but not limited to: MS193, MS193T, MS201CEM, MS201T.
Stihl Chain (Yellow): 3613 005 0055
Stihl 5/32" File: 7010 871 0401
| Sprocket nose pitch |
9,32mm/3/8"P / 9,32mm/3/8" |
| Groove width |
1,3mm/.050" |
| Bar tail |
3005 / 3003 |
| No. of teeth, sprocket nose |
9 / 11 |
| Bar length |
30cm/12" / 35cm/14" / 40cm/16" / 45cm/18" / 63cm/25" |
